MIDDLEBURN RS7 SQUARE TAPER BIKE CRANKS

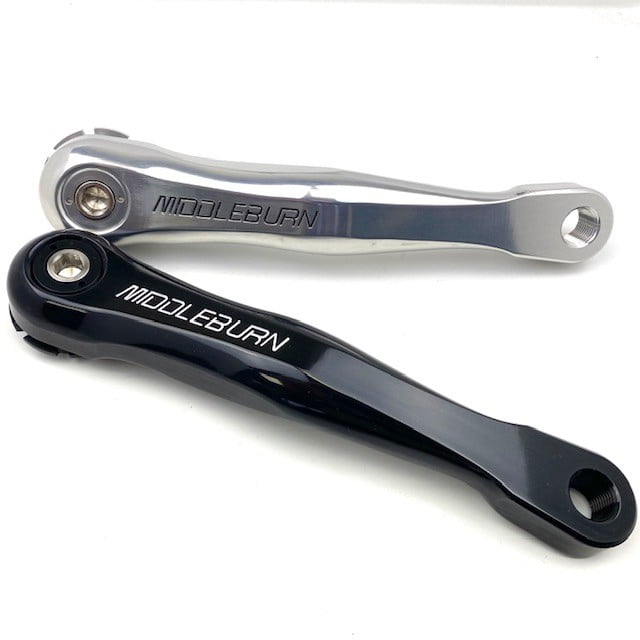

Middleburn RS7 cranks are compatible with square taper type bottom brackets with the JIS axles. The RS7-SQ-175 crankset weight is approximately 434g including the lock ring. The cranks are available in the lengths of 160mm, 165mm, 170mm, 175mm and 180mm in a choice of either a silver or black finish.

Using a 113mm bottom bracket axle the Q factor of the RS7's is approximately 170mm and the clearnace between the crank arms is 143mm.

Middleburn cranks were first developed in 1991 and since then the cranks have undergone many refinements. The RS7's were really introduced as MTB tyres were getting wider and the need for crank arms to clear the wider chainstays on frames.

The cranks are hot forged from high quality 7075 T6 aluminium. They are fully CNC machined before being hand polished, anodised and then finished off by hand. All the cranks go through the same procedure so whichever crank arm you choose will be to the best quality.

The cranks do not come with the Self-Extracting Bolts as shown in one of the pictures but they can be purchased separately from our website.

The cranks come with a lock ring but if you do require a spare they are on our website as LR-SQ-BK or LR-SQ-SI with BK being Black and SI being silver

Photo shows an image of the RS7's fitted with the SP-SQ-TT-UNO-332-32-HC and some Self Extracting caps too for illustration purposes.

If you purchase a spider or UNO with your cranks and would like it mounted onto them prior to shipping, please add a note in your order and we will make sure this is completed before you receive them.
