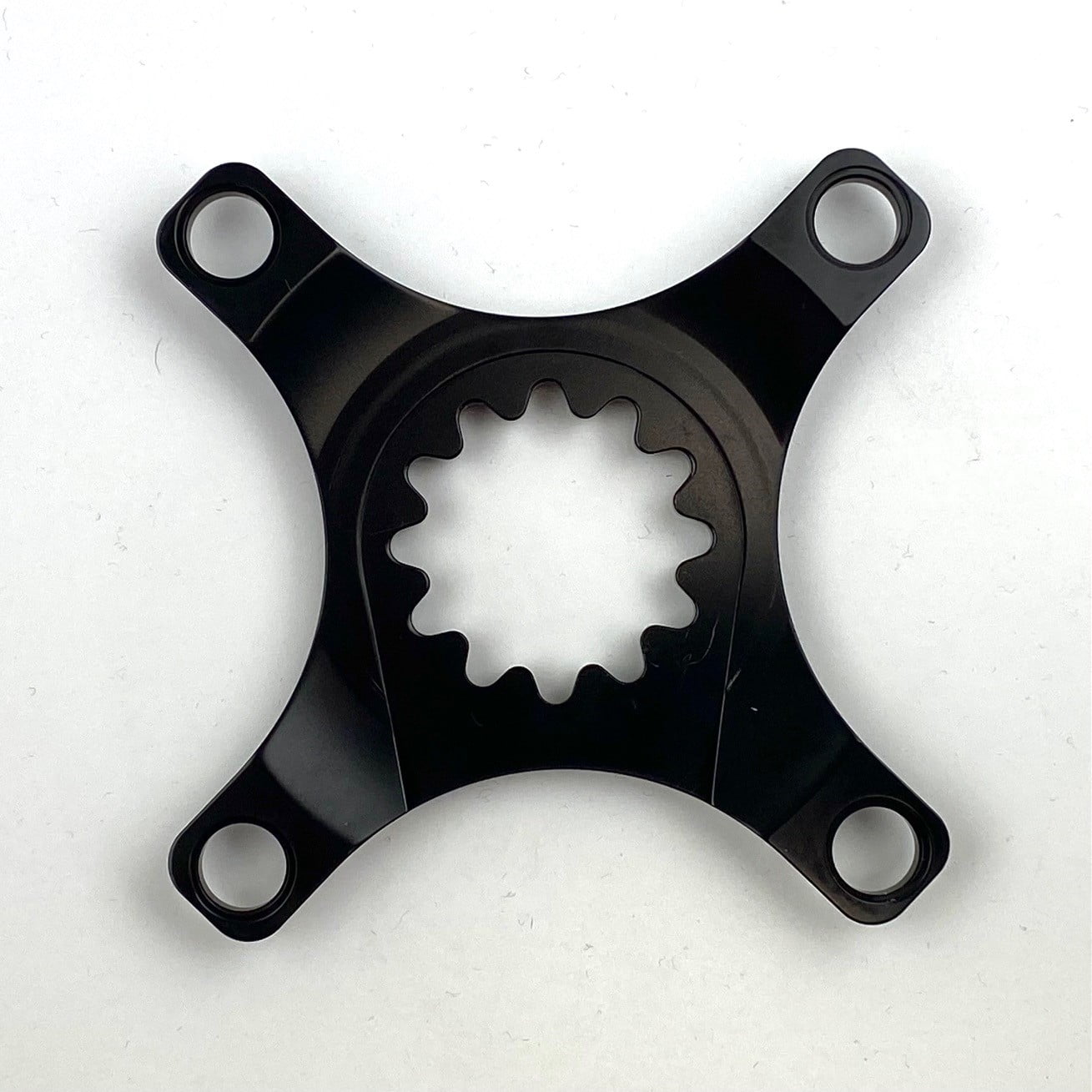

MIDDLEBURN RS8 & RS7 X-TYPE GATES CARBON DRIVE 88MM BELT DRIVE SPIDER - 54MM & 57MM CHAINLINE ROHLOFF COMPATIBLE

THESE SPIDERS ARE FOR USE ON RS8 X TYPE 7 RS7 X TYPE CRANKS THAT REQUIRE A SINGLE CHAINRING OF 88MM ID FITTING FOR THE GATES CARBON DRIVE. THEY ARE ALSO IDEAL FOR TANDEM BIKES USING THE GATES CARBON DRIVE ON THE TIMING SIDE. DUE TO NO CHAINLINE REQUIREMENT JUST SELECT THE 54MM TYPE EITHER WITH OR WITHOUT THE GUARD.

PLEASE NOTE - THE 54MM SPIDER IS AVAILABLE IN 2 OPTIONS EITHER FOR FITTING OF A GUARD OR WITHOUT. THE OPTION WITHOUT ONLY HAS A SINGLE TAB CUT-OUT SO PLEASE ENSURE YOU ORDER THE CORRECT ONE. THE SPIDERS FOR GUARD FITTING ARE DESIGNATED AS GRD

THE 4 ARM 104 BCD SPIDERS ARE MACHINED FROM 7075 T6 AEROSPACE ALUMINIUM FOR MAXIMUM STRENGTH

THESE SPIDERS HAS BEEN DESIGNED TO SPECIFICALLY WORK WITH THE GATES CARBON DRIVE AND ARE IDEAL FOR USE WITH A ROHLOFF HUB TOO. IF IN DOUBT CHECK THE TECHNICAL INFORMATION REGARDING YOUR HUB TO FIND OUT THE CHAINLINE YOU REQUIRE AND IF IN DOUBT PLEASE CONTACT US FOR HELP.

CODES FOR AVAILABLE SPIDERS

SP-X-104-54-X1-GATES-88MM-BK

SP-X-104-54-X1-GATES-88MM-SI

SP-X-104-54-X1-GRD-88MM-BK

SP-X-104-54-X1-GRD-88MM-SI

SP-X-104-57-X1-GATES-88-BK

SP-X-104-57-X1-GATES-88-SI

These spiders also accept the SRAM X-SYNC 104bcd 12 speed Eagle chainrings as these have the 88mm ID fitting and NOT 90mm as usual. These chainrings are available in sizes 32, 34, 36 and 38t as well.

IMPORTANT - The interface on ALL Middleburn spiders is the same and so you can fit ANY spider onto any cranks BUT fitting X Type spiders onto SQ Taper Cranks or vice versa will have an effect on the chain line and change it from it's designed specification. If you are doubt what spider can be used on which type of cranks please email us and we can help.
